The Horsemen's Track and Equipment, Inc., 3,000 Gallon Water Wagon.

Specifications:

WATER TANK:	64" diameter 144" long 2,000 gallon capacity 18" diameter access port with ladder Two internal baffles Port for overhead filling
PUMP:	Teel 3" centrifugal 21,600 GPH (36) GPM @ 20 feet head Discharge tank contents in 6 minutes
PUMP DRIVE:	8 HP Briggs & Stratton 4 cycle, air cooled Kill switch from tractor
TRAILER:	6 wheel tandem axle High flotation 10 ply tires 24,000 lbs. capacity
PIPING SYSTEM:	Sch. 80 PVC & Sch. 40 Aluminum pipe PVC ball valves for spray control (controlled from tractor 13' retractable light weight aluminum spray boom 7' fixed rear spray boom Aluminum quick disconnect fitting for below tank water source (hose optional) 45 brass spray nozzles (20' spray path) 50' FIRE HOSE WITH SPRAY NOZZLE & VALVE
PAINT:	Custom painted farm colors
WEIGHT:	4,400 lbs. empty 21,100 lbs. full
DIMENSIONS:	Height: 7' 6" Width: 8' 4" Length: 16' 0"

A 3,000 Gallon Water Truck such as shown to the right - with a new Ford chassis and stainless steel tank is also available - specifications on request.

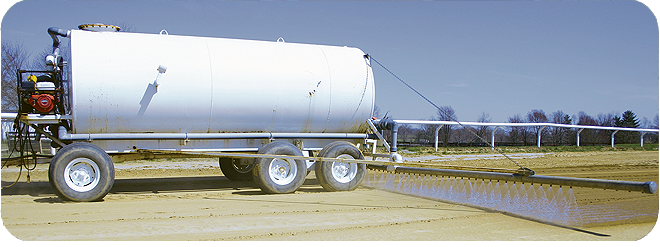

Water Wagon, 3,000 Gallon

Water Truck, 3,000 Gallon
Spray bar Operaton
(Hipodromo Sociedad, Santiago, Chile)

Water Truck, 3,000 Gallon
Fan Spray Operation
(Evangeline Downs, Opelousas, Louisiana)
