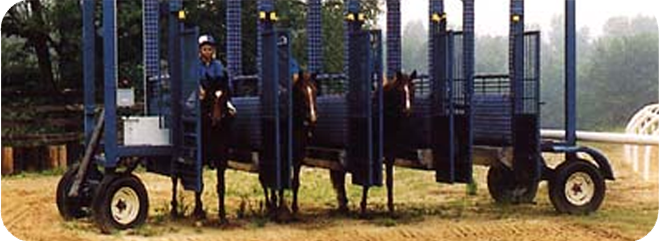

The overhead and columns, that come down to the stall partitions, are made out of rectangular tubing 3" x 5" and 3/16" thick.
|
Cross bracing also 3" x 5" is made entirely of square or rectangular tubing (all welded).
|
The stall partitions are made out of 14 gauge galvanized or stainless steel.
|
All front and back gates are padded with belting 3/8" thick.
|
The stall partitions, where the horse's sides and legs might contact, are bonded with 1/8" neoprene.
|
The inside of the stall is all lined and very smooth; will last indefinitely; takes the least care and maintenance and cushions any shock.
|
The stalls are 24" wide where the horse stands and 43" above (measured center to center).
|
There is a 10' clearance from the ground and is transportable down the highway.
|
